CPU

Intel Gemini Lake Celeron J4105/J4125 CPU

Memory

DDR4-2400, 1*SO-DIMM, up to 16GB

Display Interface

intel UHD  Graphics  600

Ethernet

4*Intel^® 1Gbps PCIe Ethernet Controller, RJ45

Storage

1*SATA3.0, 1*mSATA

Expansion Interface

2*Mini-PCIe (1*mSATA, 1*Wifi/3G/4G supported)

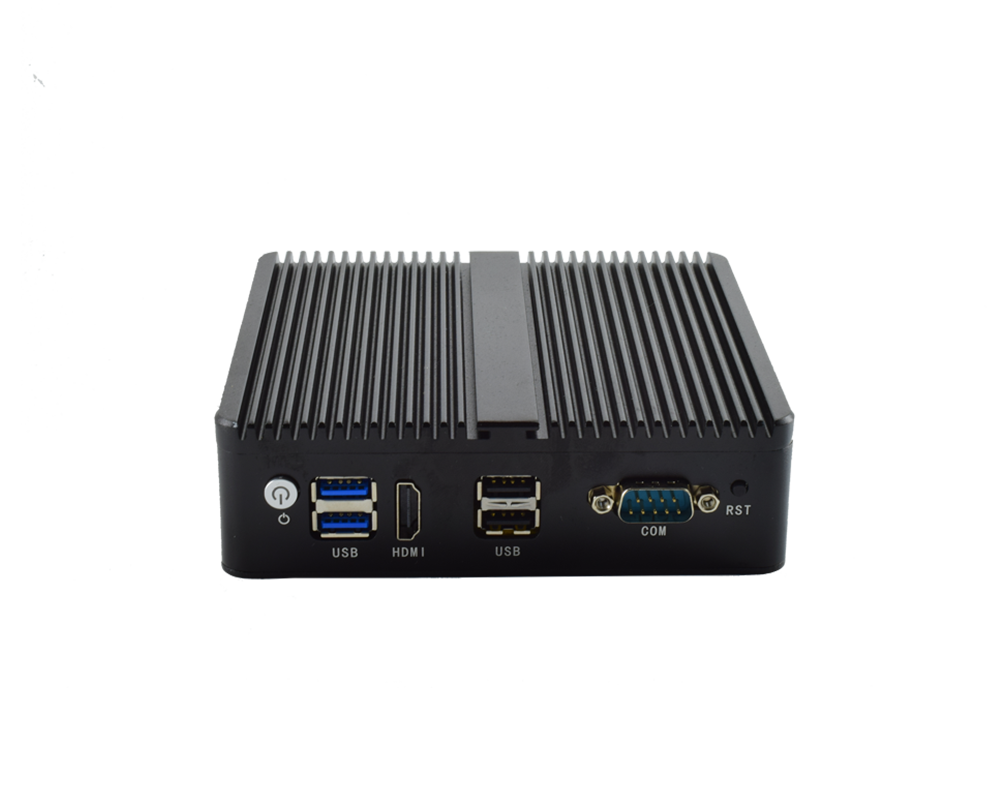

Front panel

1*Power switch, 2*USB3.0，2*USB2.0, 1*COM(RS232)，1*HDMI，1*RST

Rear panel

1*DC12V，4*intel I211 GbE LAN，1*Hard disk indicator，1*Power indicator

Power input

DC 12V

Chassis

parameters

Chassis

Colour：black     Material Science：Aluminium alloy body

Complete

Dimension：13.6*12.7*4cm

Packing

Dimension:   20*17*12cm

Temperature&

 humidity

Working

temperature

0°C~55°C (32°F~131°F)

Operating humidity

10%-95% @40°C non-condensing

Storage humidity

-40°C~55°C (-40°F~176°F)

Operating

 system

system

Windows 10, Linux
