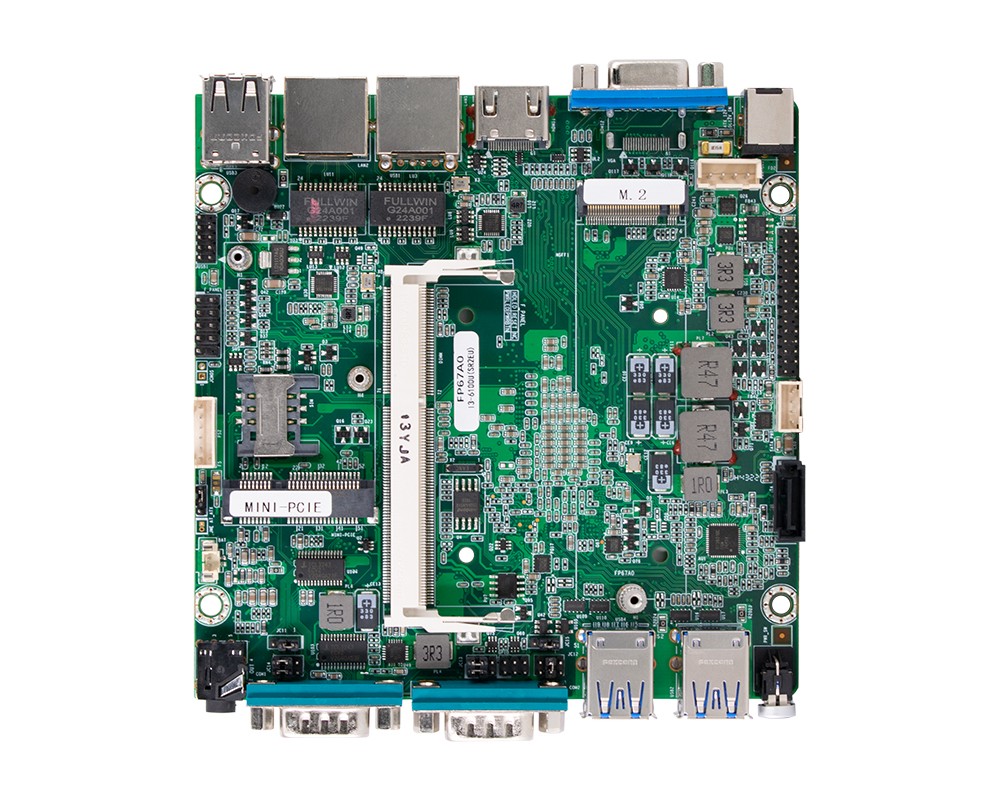

Intel Sky Lake-U Kaby Lake-U CoreI3 I5 I7 CPU

1*EDP,1*HDMI,1*VGA/HDMI

DDR3-1600, 1*SO-DIMM, up to8GB

1*SATA 3.0

2*Realtek^® 1Gbps PCIe Ethernet Controller, RJ45

1*Mini-PCIe ( 1*Wifi/3G/4G supported),1*M.2( 1*MVME/SATASSD supported)

2*RS232/485

4*USB3.0,4*USB2.0

1*JUSB1

1*AUTO_PWR

1*PS/2

1*AT-ATX

1*F-PANEL

1*JC11/JC12/JC13/JC14

1*GPIO

1*SATA_PWR

1*EDP

1*PWR-OUT

1*SATA

1*JC15

Operation: 0℃~60℃, Storage: -25℃~75℃

Operation: 10%~90%, Storage: 5%~95%, non-condensing

Windows 10,Linux

AMI UEFI BIOS

DC12V

120mm*120mm
