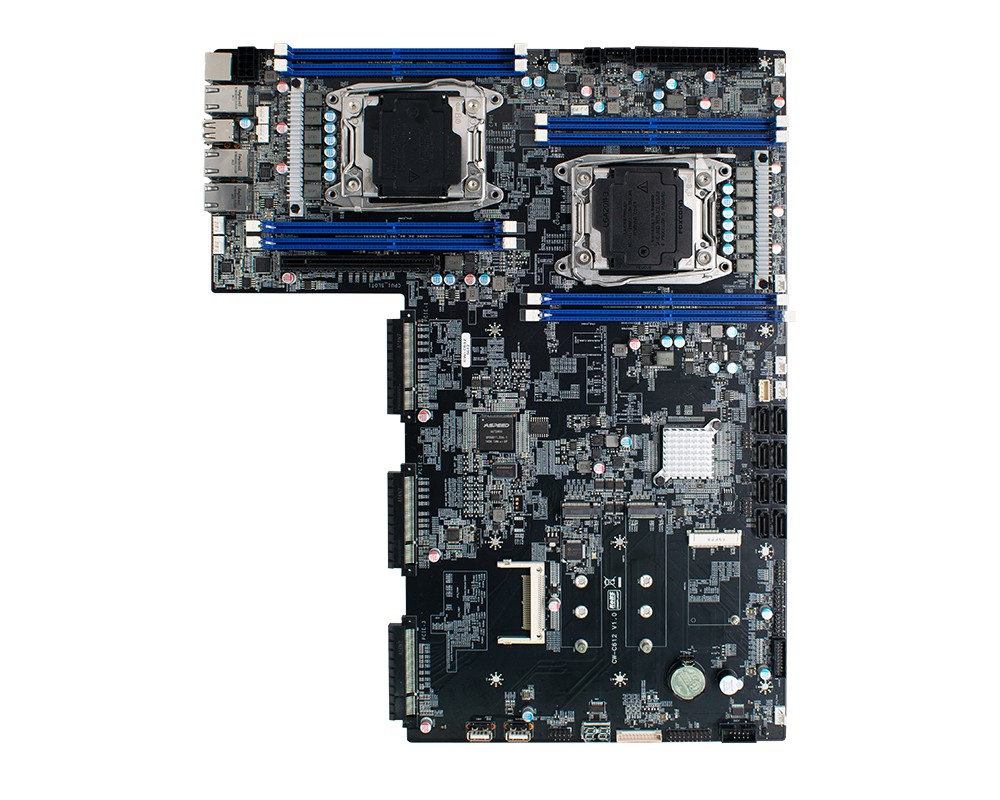

| Model | FT-X10D2E | |
| CPU | Dual Intel® Xeon® Scalable Processors,Socket R3 (LGA 2011) | |
| Chipset | Intel®C612 Series | |
| Memory | DDR4-2133/2400, 8*DIMM, up to 1TB, support ECC | |
| Ethernet | 2*Intel® I210-AT 1Gigabit Ethernet Controller 1* Realtek RTL8211E PHY | |
| Display Interface | ASPEED AST2400 BMC 1*VGA | |
| Storage | Intel® RSTe Support software RAID 0, 1,10 & 5 8*SATA3.0 1* NVME M.2 M-Key（PCIE2.0X4） 1*mSATA | |
GPU | NVIDIA Series or AMD Series | |
| USB | 2*USB2.0 | |
| IPMI | Support for Intelligent Platform Management Interface v2.0 IPMI 2.0 with virtual media over LAN and KVM over LAN support ASPEED AST2400 BMC | |
PCI-E | 1*PCIE-X16, 3*PCIE-X8 | |
Power Input | 2*ATX power supply 1600W 1+1 redundant white gold efficiency power supply | |
Server | Windows Server 2008 R2(64bit) Windows SBS 2011 (64bit) Windows Server 2012/2012 R2 (64bit) Redhat Enterprise Linux Server (32bit/64bit) Suse Enterprise Linux Server (32bit/64bit) Ubuntu Server (32bit/64bit) | |
Virtualization | VMWare ESXi (Target) Microsoft Hyper-V (Target) Citrix Xen Server (Target) Linux Kernel Virtual Machine (Target) | |
| BIOS | AMI UEFI BIOS | |
Temperature | Operation: 10℃ ~ 35℃；Storage:-40℃ ~ 70℃ | |
Relative Humidity | Operation:35%~80% ； Storage: 20% ~ 90% | |
| Dimension | 409mm*335mm | |
