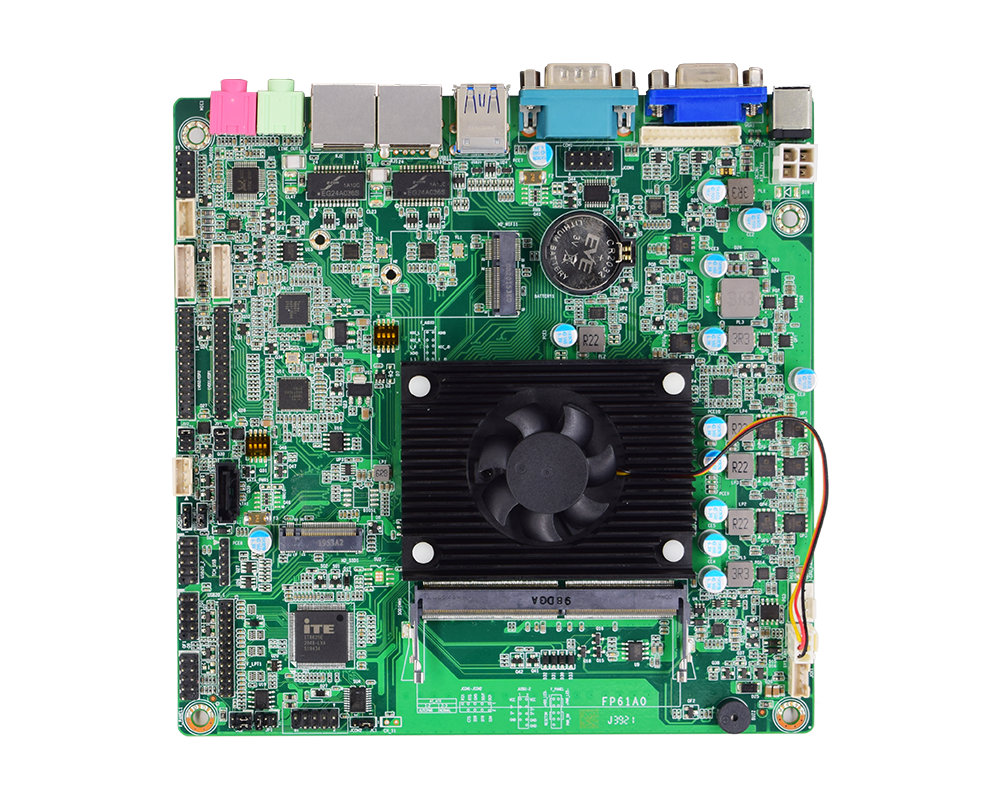

11th Intel Core/ Celeron CPU (Tiger Lake)

2*LVDS/EDP, 1*VGA

DDR4-3200, 1*SO-DIMM, up to 32 GB

1*SATA3.0, 1*M.2

2* Realtek^® 1Gbps PCIe Ethernet Controller, RJ45

1*M.2 (Key-E, 2230, Wifi+BT), 1*M.2 (Key-M, 2242/2280, PCIe x4 NVMe/ SATA SSD)

Realtek^® 5.1 channel HDA Codec, with MIC/Line-out and Amplifier

1*RS232, 1*RS232/485

2*USB3.0 ，4*USB2.0 ，1*TCH_USB

2*EDP

1*JVGA

2*IVCN

2*LVDS Resolution dial switch

2*JLV

1*LPT

1*F_PANEL

1*F_AUDIO

2*USB2.0

1*JQX

1*SATA_PWR

1*SYS_FAN

1*CPU_FAN

1*SPK针

1*AUTO_PWR

1*TCH_USB

1*JCMOS

2*JCOM

1*JC12 485/232

1*JC11 485/232

1*JP2 COM2

DC_IN, VGA, COM, USB3.0, LAN1,LAN2, Lin_out, Lin_IN

Operation: 0℃~60℃, Storage: -20℃~75℃

Operation: 10%~90%, Storage: 5%~95%, non-condensing

Windows 10,Linux

AMI UEFI BIOS

DC12V

170mm*170mm
