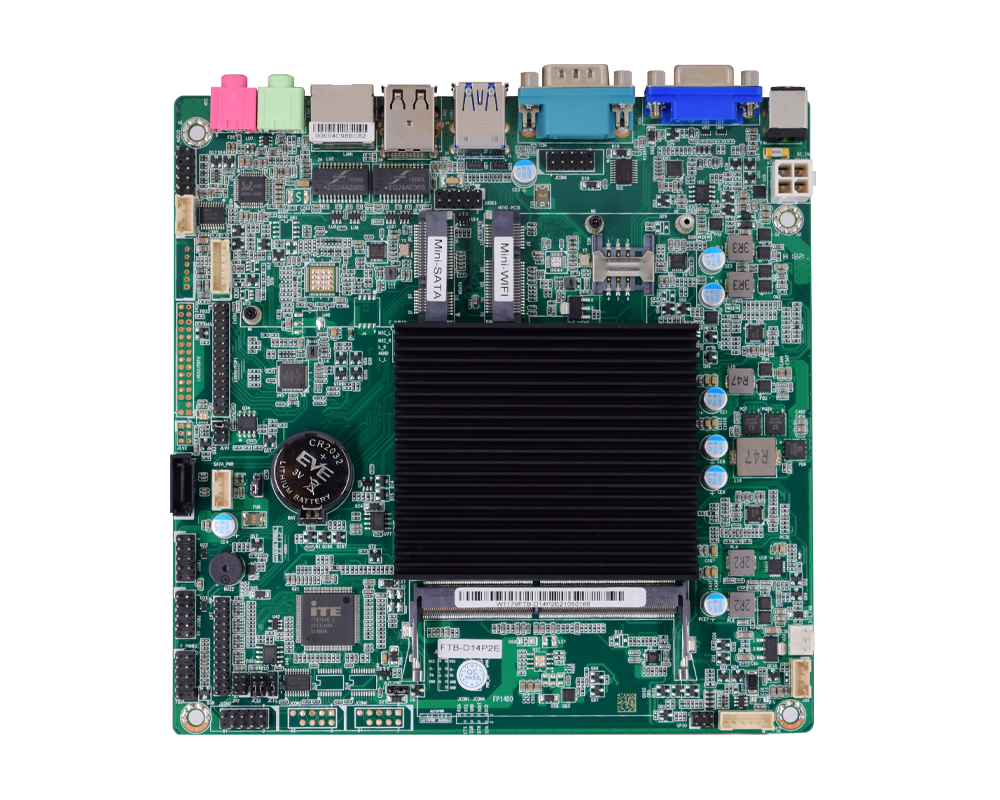

intel Gemini Lake Celeron J4105/J4125CPU

2*LVDS/EDP，1*VGA

DDR3L-1333, 1*SO-DIMM, up to 8 GB

1*SATA 3.0, 1*mSATA

2*Realtek^® 1Gbps PCIe Ethernet Controller, RJ45

2*Mini-PCIe (1*mSATA, 1*Wifi/4G supported)

Realtek^® ALC662 5.1 channel HDA Codec, with MIC/Line-out and Amplifer

1*RS232，1*RS232/485

1*USB3.0, 5*USB2.0, 1*TCH_USB

1*LVDS/EDP1

1*JVGA

2*IVCN

1*LVDS Resolution dial switch

1*PS/2

2*JLV  LVDS/EDP

1*F_AUDIO

4*USB2.0

1*JQX

1*LPT

1*SPK

1*SYS_FAN

1*CPU_FAN

1*AT-ATX

1*JTXE TXE

1*JCMOS

2*COM

1*JC11 485/232

1*JC12 485/232

1*JP2 COM2

1*TCH_USB

1*F_PANEL

DC_IN, VGA, COM, USB3.0, LAN1,LAN2, Lin_out, Lin_IN

Operation: 0℃~60℃, Storage: -25℃~75℃

Operation: 10%~90%, Storage: 5%~95%, non-condensing

Windows 7/8/10,Linux

AMI UEFI BIOS

DC12V

170mm*170mm
