CPU

Intel Gemini Lake  Celeron J4105/J4125 CPU

Memory

DDR4-2400, 1*SO-DIMM, up to 16GB

Display Interface

1*VGA, 1*HDMI

Ethernet

2*Realtek^® 1Gbps PCIe Ethernet Controller, RJ45

Storage

1*SATA3.0, 1*mSATA

Expansion Interface

2*Mini-PCIe (1*mSATA, 1*Wifi/3G/4G supported)

Front panel

1*Power switch, 2*USB3.0, 2*USB2.0, 2*COM

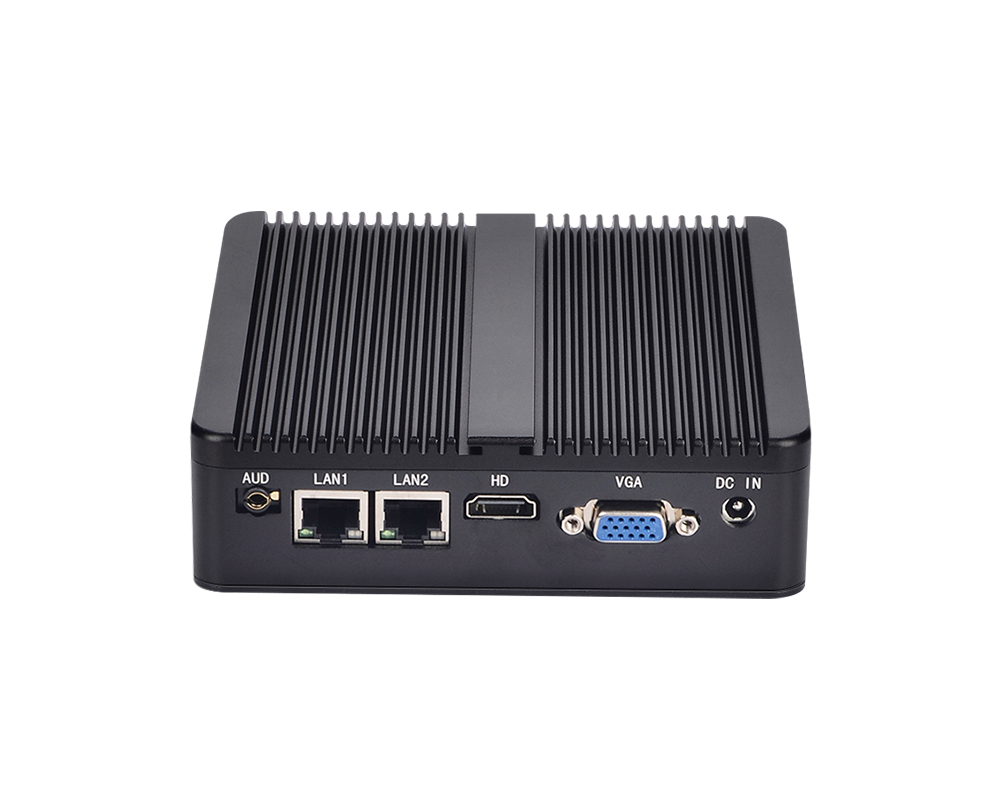

Rear panel

1*Audio， 2*LAN，1*HDMI，1*VGA ，1*DC12V

Power input

DC 12V

Chassis

 parameters

Chassis

Colour：black     Material Science：Aluminium alloy body

Complete

Dimension：13.6*12.7*4cm

Packing

Dimension:   20*17*12cm

Temperature&

 humidity

Working

temperature

0°C~55°C (32°F~131°F)

Operating humidity

10%-95% @40°C无冷凝

Storage humidity

-40°C~55°C (-40°F~176°F)

Operating

system

system

Windows 10, Linux
