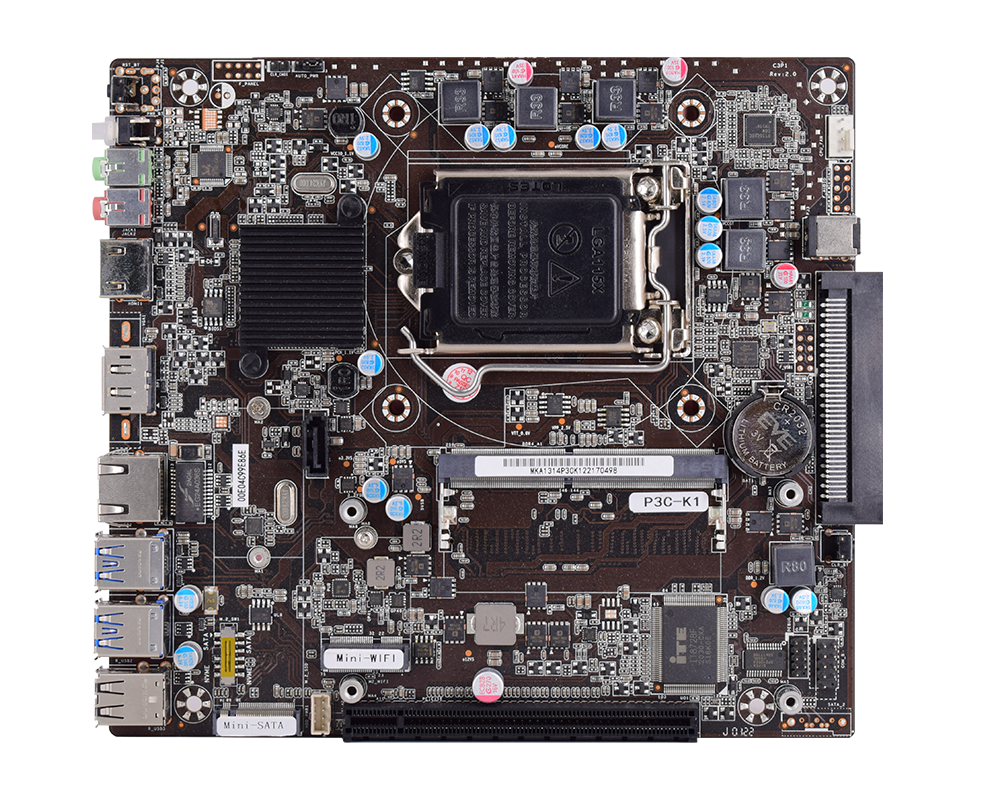

| Model | P3C-K1 | |
| CPU | Supports intel 6/7/8/9th Gen Core i3/i5/i7 CPU | |
| Chipset | Intel® H310C Chipset, TDP 6W | |
| Memory | DDR4-1866/2133/2400/2666, 2*U-DIMM, up to 32 GB | |
| Ethernet | 1*GbE LAN | |
| Display Interface | 1*HDMI,1*DP,1*OPS _HDMI | |
| Storage | 1*SATA3.0, 1*M.2 | |
| Expansion Interface | 1*M.2(1*Wifi/3G/4G supported) ,1*M.2/SSD, 1*OPS Port (Support independent graphics card) | |
| Audio | Realtek® ALC662 5.1 channel HDA Codec, with MIC/Line-out | |
| USB | 3* USB3.0 3* USB2.0 | |
| I/O Interface | 1*RST_BT 1*PWR_BT 1*Earphone 1*Mic 1*HDMI 1*DP 1*RJ45 3*USB3.0 3*USB2.0 1*DC JAC 1*OPS（JAE TX25 80pin） | |
| System | Win10 | |
| BIOS | AMI UEFI BIOS | |
| Temperature | Operation: 0℃~60℃, Storage: -25℃~75℃ | |
| Relative Humidity | Operation: 10%~90%, Storage: 5%~95%, non-condensing | |
| Dimension | 170mm X190mm | |
