Digital Signage

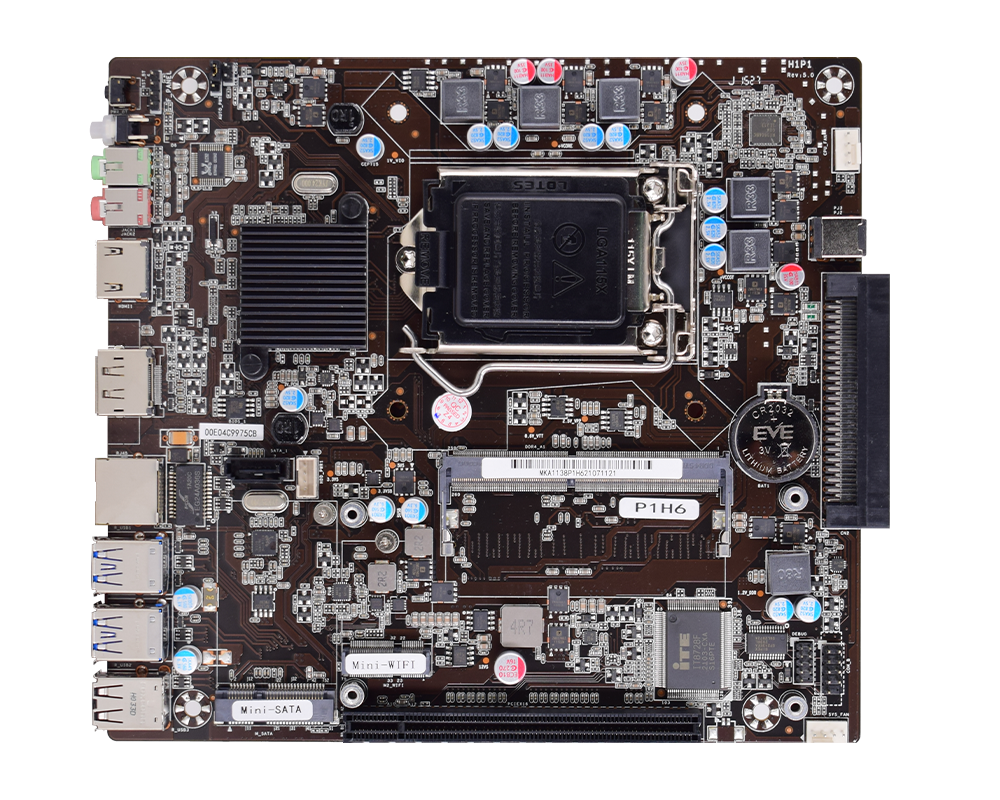

P1H6

项目介绍:

  Supports intel 6/7/8/9th Gen Core i3/i5/i7 CPU H110 Chipest

  1*HDMI, 1*DP, OPS support 1*HDMI,

     Support independent graphics card

  1*GbE LAN

  1*M.2/Wifi, 1*mSATA/SSD

  170mm*190mm,DC12V-19V



事宜人群:
Model
P1H6
CPU

Supports intel 6/7/8/9th Gen Core i3/i5/i7 CPU

Chipset

Intel® H310C Chipset, TDP 6W

Memory

DDR4-1866/2133/2400/2666, 2*U-DIMM, up to 32 GB

Ethernet

1*GbE LAN

Display Interface

1*HDMI,1*DP,1*OPS _HDMI,

Storage

1*SATA3.0, 1*mSATA

Expansion Interface

1*M.2(1*Wifi/3G/4G supported) ,1*mSATA, 1*OPS Port(Support independent graphics card)

Audio

Realtek® ALC662 5.1 channel HDA Codec, with MIC/Line-out

USB

3* USB3.0

3* USB2.0

I/O Interface

1*RST_BT

1*PWR_BT

1*Earphone

1*Mic

1*HDMI

1*DP

1*RJ45

3*USB3.0

3*USB2.0

1*DC JAC

1*OPS(JAE TX25 80pin)

System

 Win10

BIOS

AMI UEFI BIOS

Temperature

Operation: 0℃~60℃, Storage: -25℃~75℃

Relative Humidity

Operation: 10%~90%, Storage: 5%~95%, non-condensing

Dimension

170mm X190mm
