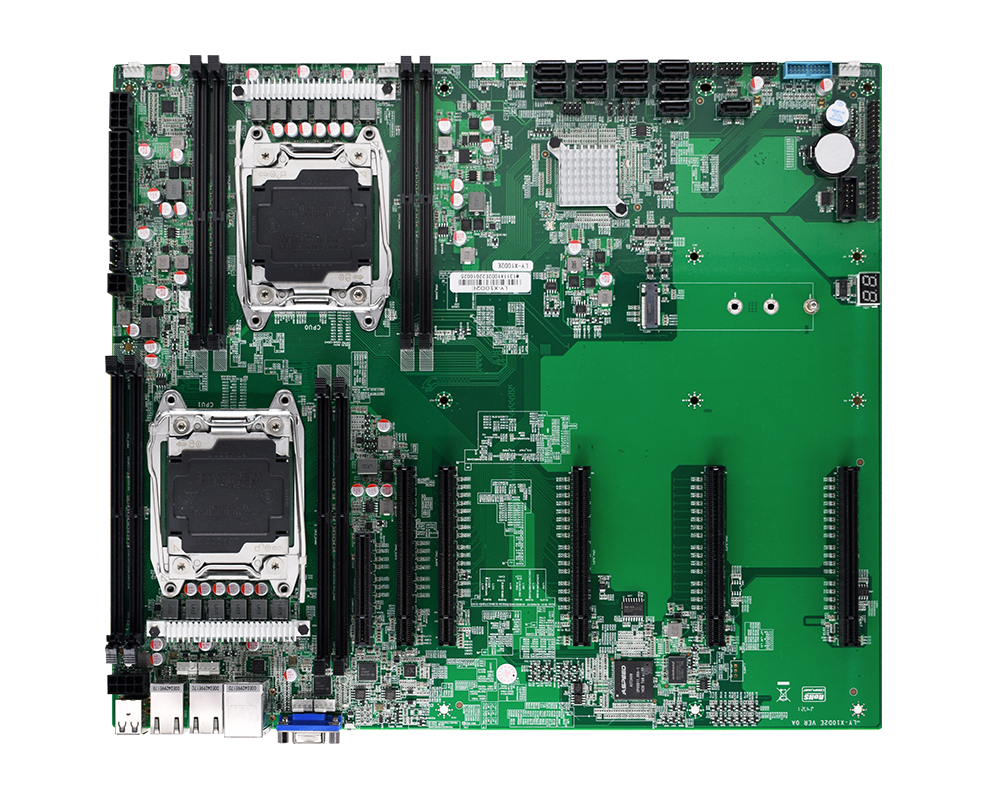

型号 | FT-X10D2E | |
CPU | 支持2个Intel® Xeon® E5-2600 v3/V4系列处理器,Socket R3 (LGA 2011) | |
芯片组 | Intel®C612芯片组 | |
内存 | 支持8根DDR4内存2133/2400MHz RDIMM, LRDIMM, 最大支持ITB | |
网卡 | 2*Intel® I210-AT 1Gigabit Ethernet Controller 1*独立管理网口 Realtek RTL8211E PHY | |
显示控制台 | ASPEED AST2400 BMC | |
显示接口 | 1*VGA | |
存储 | Intel® RSTe Support software RAID 0, 1,10 & 5 8*SATA3.0 1* NVME M.2 M-Key(PCIE2.0X4) 1*mSATA | |
显卡 | NVIDIA Series or AMD Series | |
USB | 2*USB3.0接口,2*USB2.0 | |
IPMI | Support for Intelligent Platform Management Interface v2.0 IPMI 2.0 with virtual media over LAN and KVM over LAN support ASPEED AST2400 BMC | |
PCI-E | 6*PCI-E扩展,其中4*PCIE3.0×16 slots(55mm spacing, wider than double-width), 1*PCIE3.0×8(single-width in X16 slot), 1*PCIE3.0×8 (in ×8 slot); | |
电源 | 支持2个1600W 1+1冗余白金牌效率电源 | |
Server | Windows Server 2008 R2(64bit) Windows SBS 2011 (64bit) Windows Server 2012/2012 R2 (64bit) Redhat Enterprise Linux Server (32bit/64bit) Suse Enterprise Linux Server (32bit/64bit) Ubuntu Server (32bit/64bit) | |
Virtualization | VMWare ESXi (Target) Microsoft Hyper-V (Target) Citrix Xen Server (Target) Linux Kernel Virtual Machine (Target) | |
BIOS | AMI UEFI BIOS | |
系统运行温度 | 运行温度: 10℃ ~ 35℃;非运行温度:-40℃ ~ 70℃ | |
系统储温湿度 | 运行湿度:35%~80% ; 非运行湿度:20% ~ 90% | |
PCB外观配色 | PCB 采用工业绿油漆喷涂 | |
PCB尺寸 | 38.4cm x 33.53cm |
