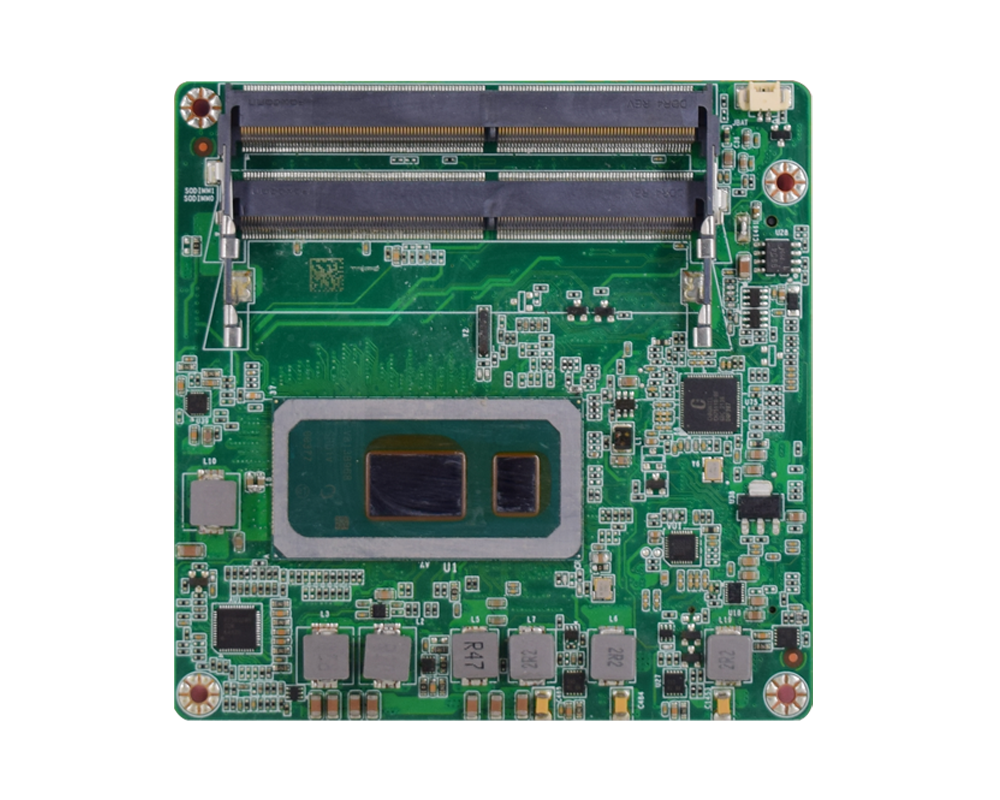

lntel  Whiskey Lake Core I3/I5/I7 CPU

DDR4-2400, 2*SO-DIMM, up to 64 GB

BIOS SPI Flash (32MB)

Intelligent EC chip

AMI UEFI BIOS

Windows 10 Enterprise RS5 64 bit

Red Hat Enterprise Linux 64-bit

Ubuntu 18.04 LTS Linux 64-bit

1* Intel^® 1Gbps PCIe Ethernet Controller, Base-T

4*USB3.0， 4*USB2.0

2 * SATA 6 Gbps

2x UART

4 GPO /4 GPI

support 1 PCIe x4,  4 PCIe x1 / 3 PCIe x2,  2 PCIe x1/1 PCIe x4,  2 PCIe x1,1 PCIe x2

default 1PCIe x4,  4 PCIe x1

Three obvious independence

support 1DDI+LVDS/eDP+VGA，default 1DDI+eDP+VGA

Support EDP backlight control. You can choose between EDP and LVDS. The default is EDP

1*Speaker Out

ACPI 4.0，Support smart battery

ACPI 4.0，Support power status S0, S3, S4, S5, G3

ACPI 4.0，Support smart power to read power

Monitor the power supply voltage through EC,

and the user can read the voltage value through BIOS

1* Low Pin Count

1* SMBus

1* I2C

EEPROM on module

Sleep & LID Button

Operation: 0℃~60℃, Storage: -25℃~75℃

Operation: 10%~90%, Storage: 5%~95%, non-condensing

Comply with iec60068 standard

Safety: iec60950-1 electromagnetic compatibility: en55024, en55022,

and FCC Part 15, sub part B, class B
