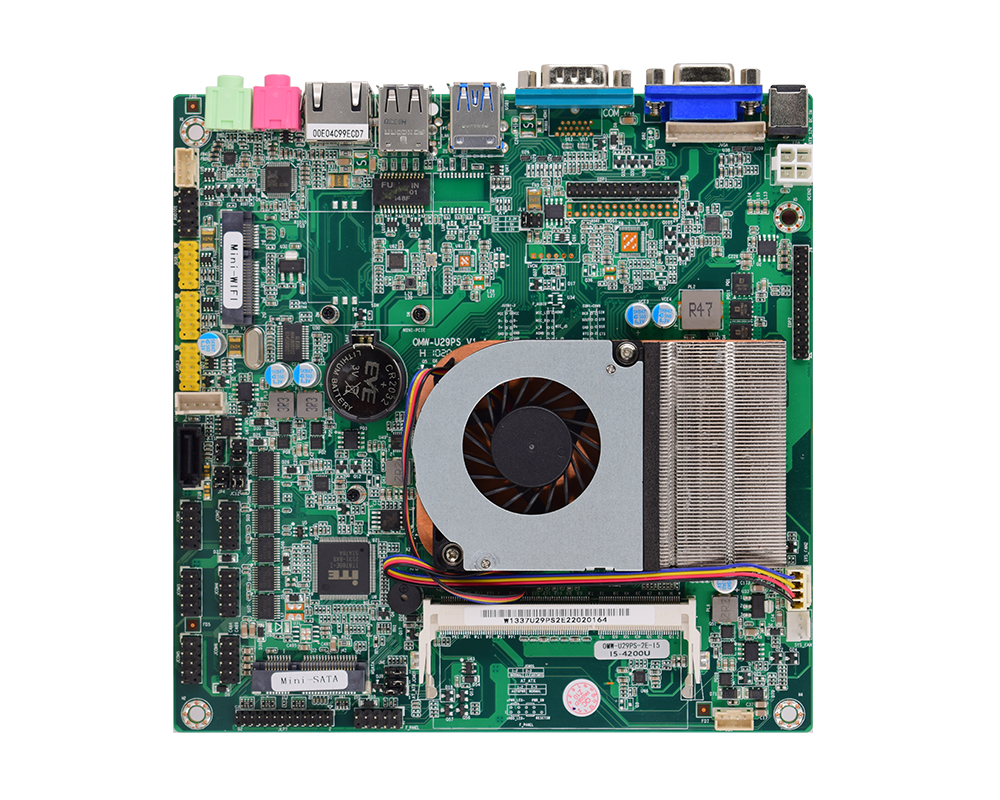

intel Haswell-U/Broadwell-Uceleron/Pentium/coreI3 /i5 /I7 CPU

2*LVDS/EDP，1*VGA

DDR3L-1333, 1*SO-DIMM, up to 8 GB

1*SATA 2.0, 1*mSATA

1*Realtek^® 1Gbps PCIe Ethernet Controller, RJ45

2*Mini-PCIe (1*mSATA, 1*Wifi/3G/4G supported)

Realtek^® ALC662 5.1 channel HDA Codec, with MIC/Line-out and Amplifer

5*RS232，1*RS232/RS485

2*USB3.0， 6*USB2.0

2*EDP/LVDS

1*JVGA

1*IVCN

1*F_PANEL

1*F_AUDIO

6*USB2.0

1*SYS_FAN 1*SYS_FAN2

1*AT-ATX

1*JME

1*JCMOS

6*COM

1*JC11 485/232

1*JC12 485/232

1*JP2 COM2

1*JP4 COM4

1*LPT

1*SATA_PWR

1*JQX

1*SIM

1*SPK

1*JLV

DC_IN, VGA, COM, USB3.0,USB2.0,LAN2, Lin_out, Lin_IN

Operation: 0℃~60℃, Storage: -25℃~75℃

Operation: 10%~90%, Storage: 5%~95%, non-condensing

Windows 7/8/10,Linux

AMI UEFI BIOS

DC12V

170mm*170mm
